Playtower combination

Playtower combination

Square timber

Playtower combination

Article 36420

CHF 23'025.–

(excl. VAT)

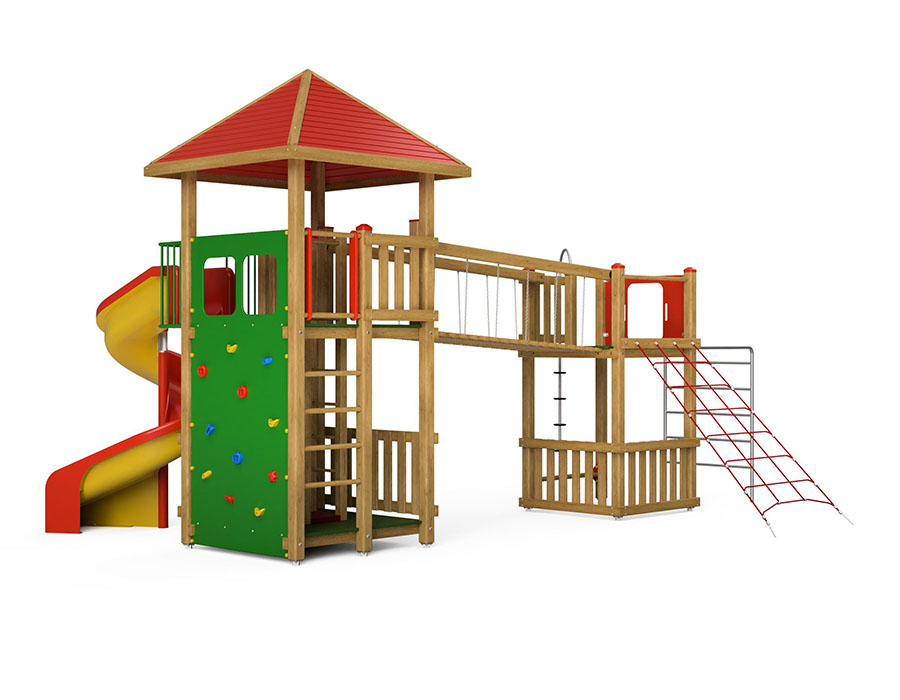

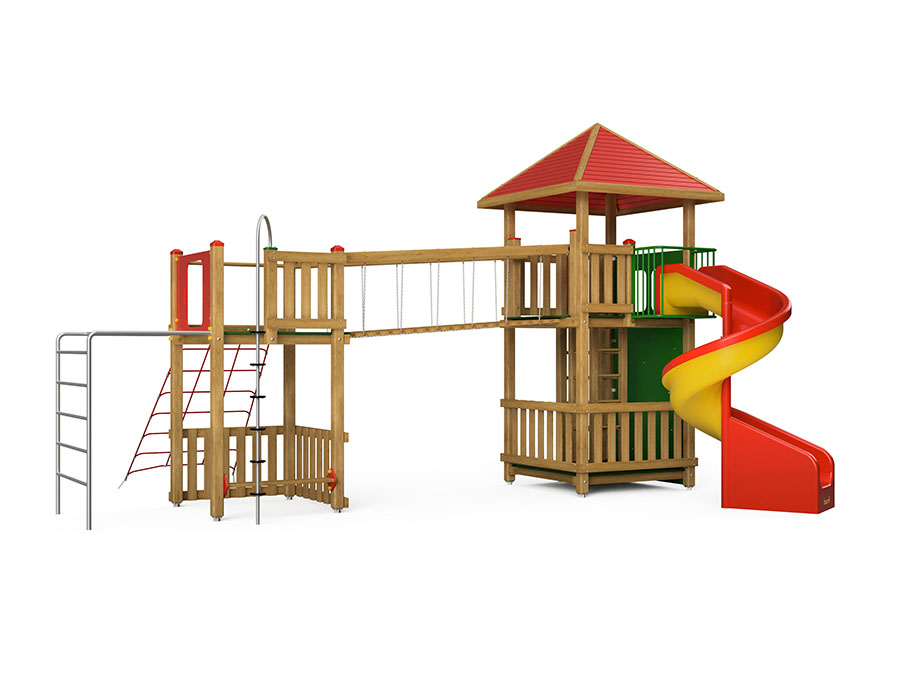

Playtower combination made of multi-glued Swiss pine, pressure impregnated, platform heights 25/180/200 cm, with pyramid roof and aluminium panel infill, stainless steel climbing pole, bent metal ladder, climbing net ascent, suspension bridge, spiral slide made of polyester red/yellow, climbing wall, incl. steel foot brackets for minimum installation depth 50 cm.

Age group	3+
Equipment line	Square timber

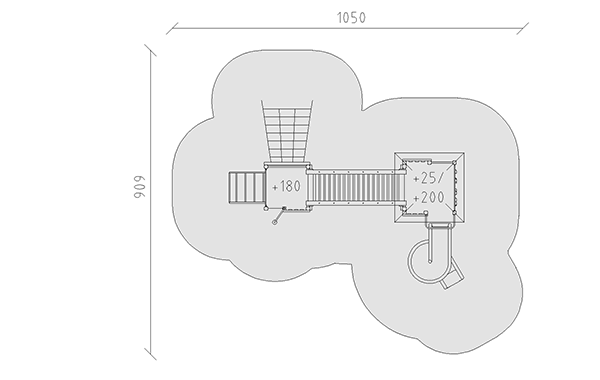

Space required	1050 x 909 cm
Fall height	200 cm

Questions about this product?

	Device dimensions	703 x 565 x 429 cm

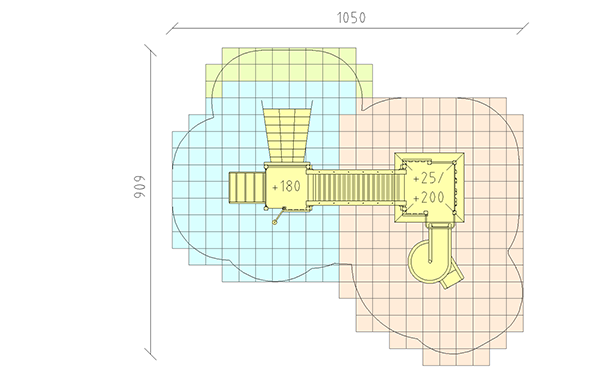

	min. impact surface	65.55 m²

	Device dimensions	703 x 565 x 429 cm
	Fall protection up to 100 cm	5.00 m²
	Fall protection up to 180 cm	28.00 m²
	Fall protection up to 210 cm	40.25 m²

Delivery scope
The playtower is delivered completely assembled. The add-on elements must be attached on site.

	Age group	3+
	Device dimensions	703 x 565 x 429 cm
	Space required	1050 x 909 cm
	min. impact surface	65.55 m²
	Fall height	200 cm

	Heaviest element	530 kg
	Foundations	15
	Concrete	2.05 m³
	Assembly time	4 h
	Installers	2
	Biggest element	210 x 210 x 430 cm

	Fact sheet
	Foundation (natural fall protection)
	Foundation (synthetic fall protection)
	2D-DWG data
